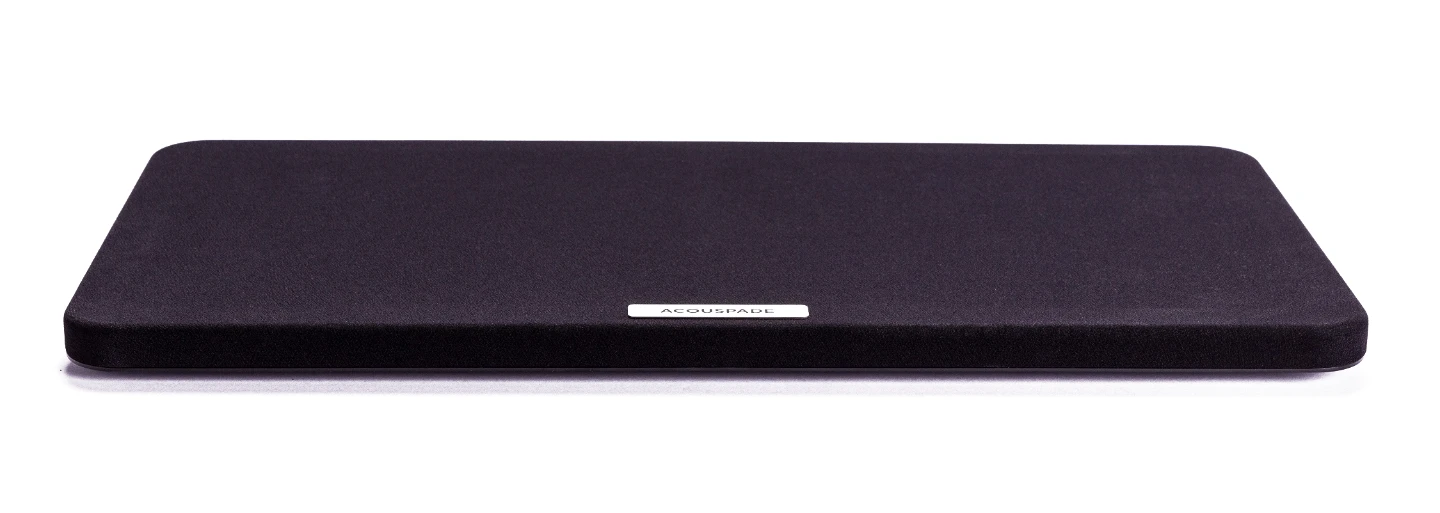

The Acouspade-XLS is the biggest and loudest directional speaker in the Acouspade series. It creates extremely directional sound which can be heard clearly even at larger distances (15+m) and in environments with high ambient noise. Therefore it is an ideal solution for noisy indoor as well as outdoor environments, if combined with its outdoor wall-mount.
The Acouspade directional speaker offers highly directional distribution of sound, which is reproduced clearly – without distortion – even at high volumes. The sound is of high-quality, with low noise and great frequency response, which includes authentic reproduction of bass notes and frequencies as low as 150 Hz. The speaker itself is easy to use – you only need to connect the audio output of your source device (such as portable music player, laptop, DVD-player etc.) with the speaker and you are ready to go.
Applications
Retail
Digital signage
Museum and gallery installations
Fairs and trade shows
Digital kiosks
Libraries
Automotive applications
Slot machines
Bars, restaurants
Hearing aid

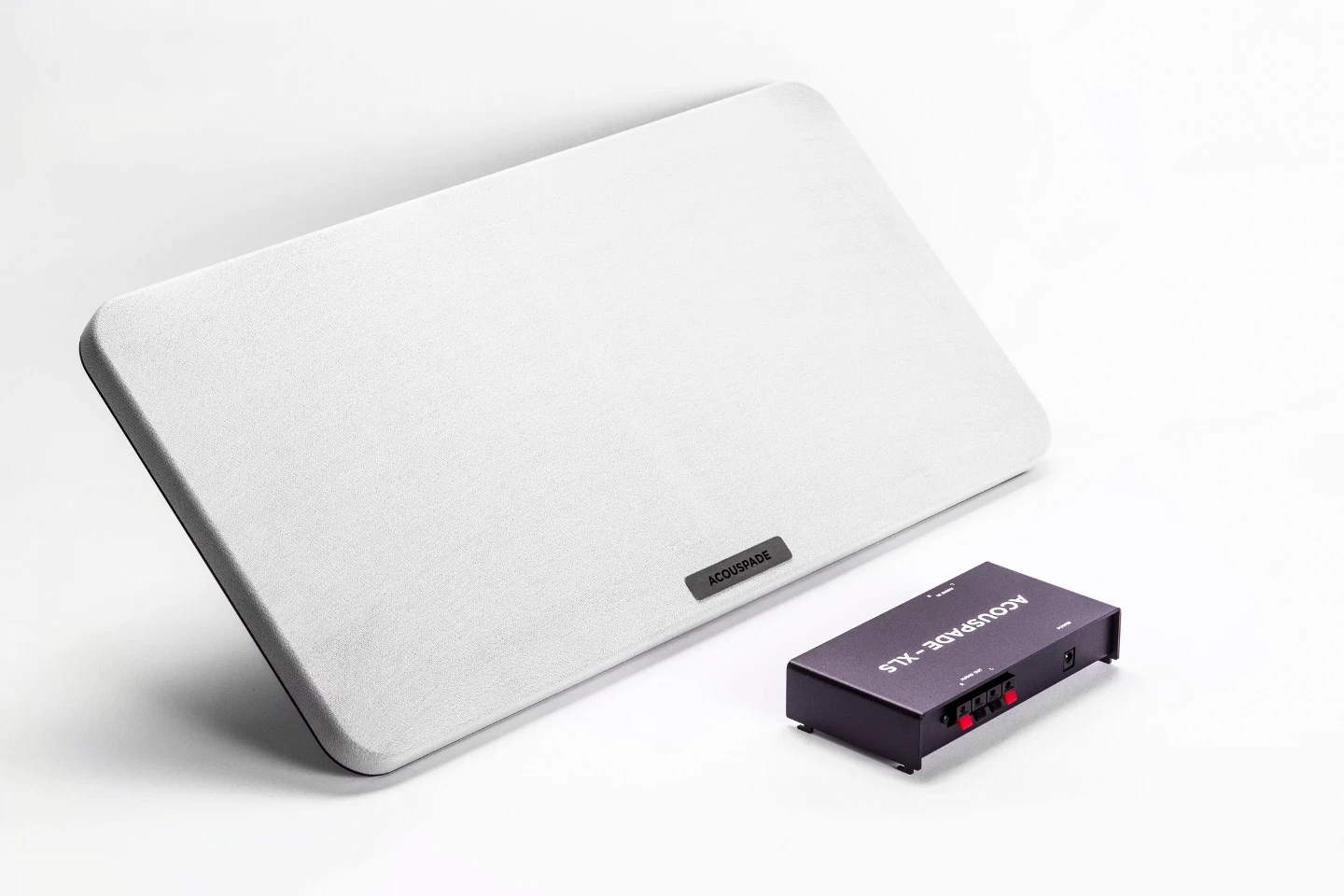

The Acosuapde-XLS is the only hyper-directional speaker on the market with a stereo sound-field distribution. The emitter panel is split in a Left and Right section, which emit the Left and Right audio channel respectively. It allows for an accurate stereo signal representation and creates an authentic reproduction of binaural recordings, without the use of headphones.

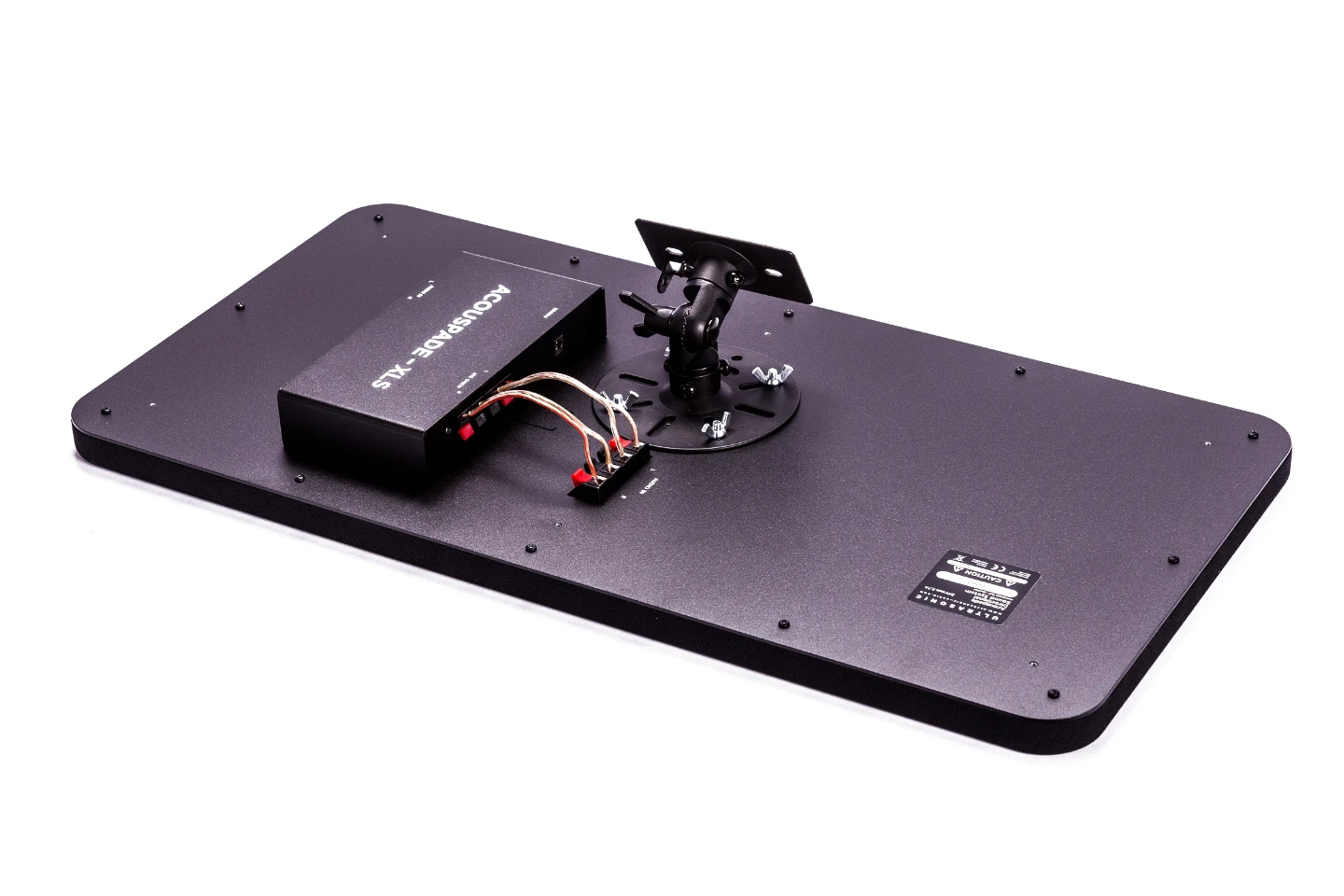

The Acouspade-XLS has an external amplifier which is beneficial in situations where long cable lengths are required. Like in other Acouspade models where the amplifier is integrated within the speaker, the XLS amplifier uses Clas-D or switching technology which does not generate any excess heat and thus does not require a heat-sink.
Features
External Amplifier
Stereo Sound-field Reproduction
High SPL
Outdoor use

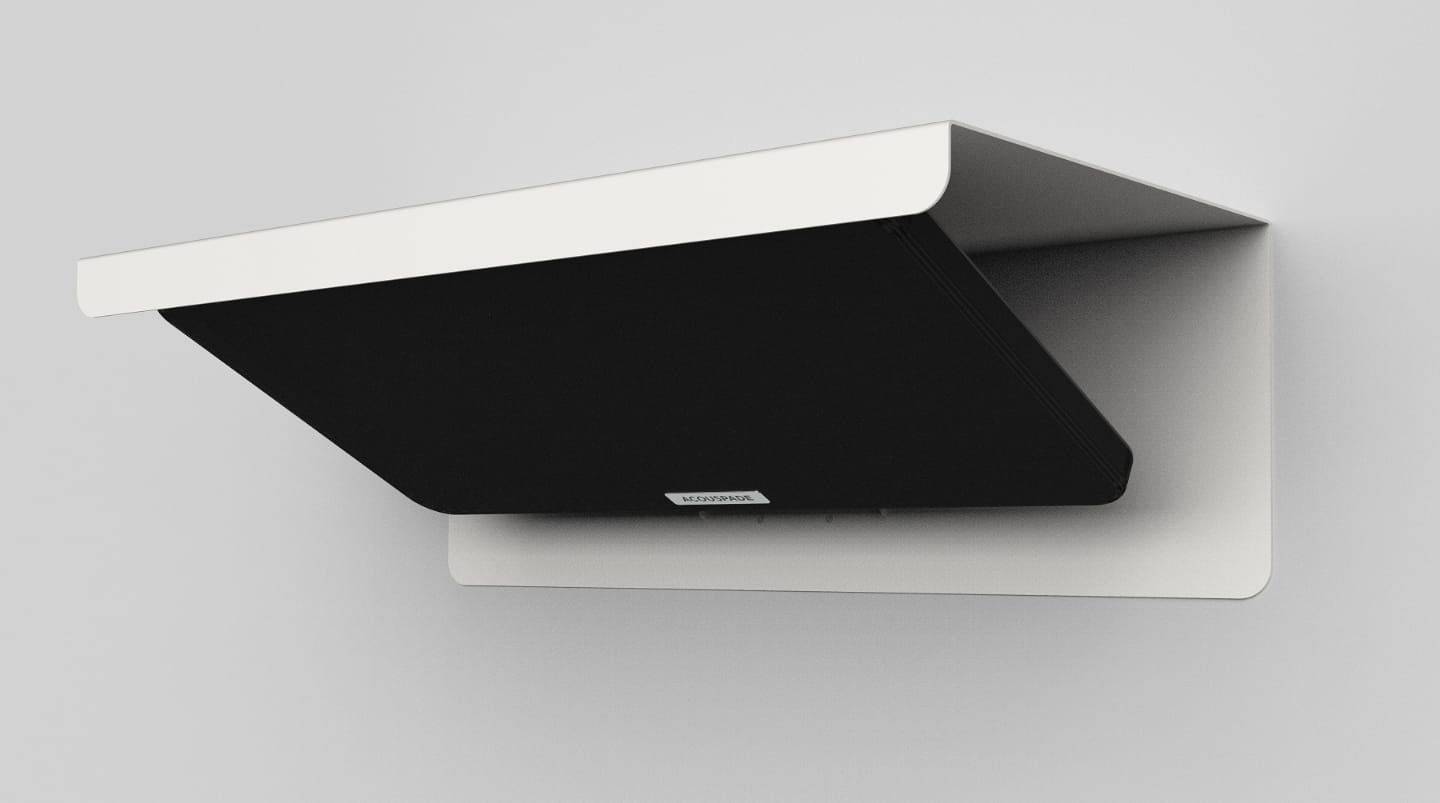

We have created an outdoor wall mount which protects the speaker from rain as well as direct sunlight exposure. While the emitter can be be used outdoors, the external amplifier still needs to be installed indoors, where it is well protected form the weather.

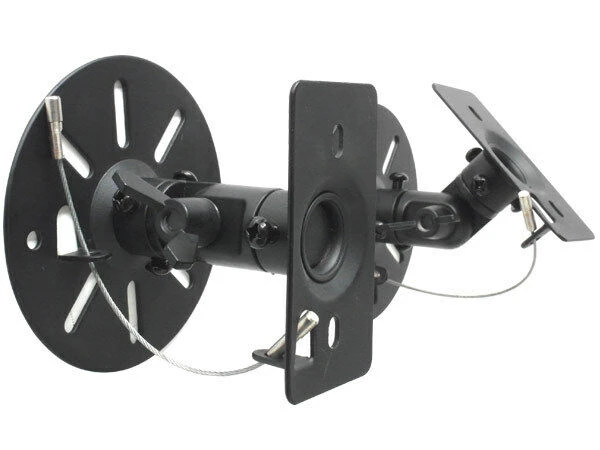

Acouspade-XLS – mounting options

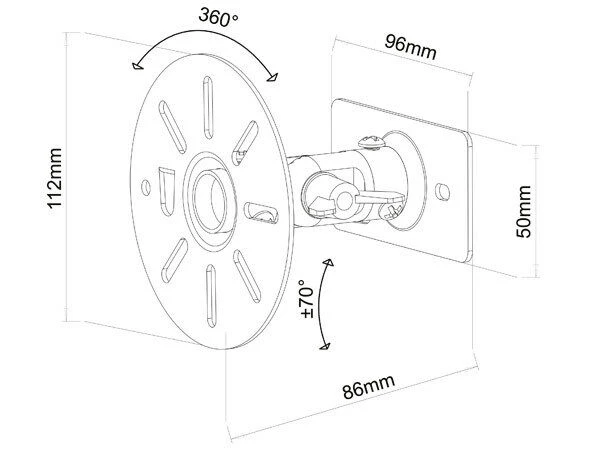

Indoor wall/ceiling mount

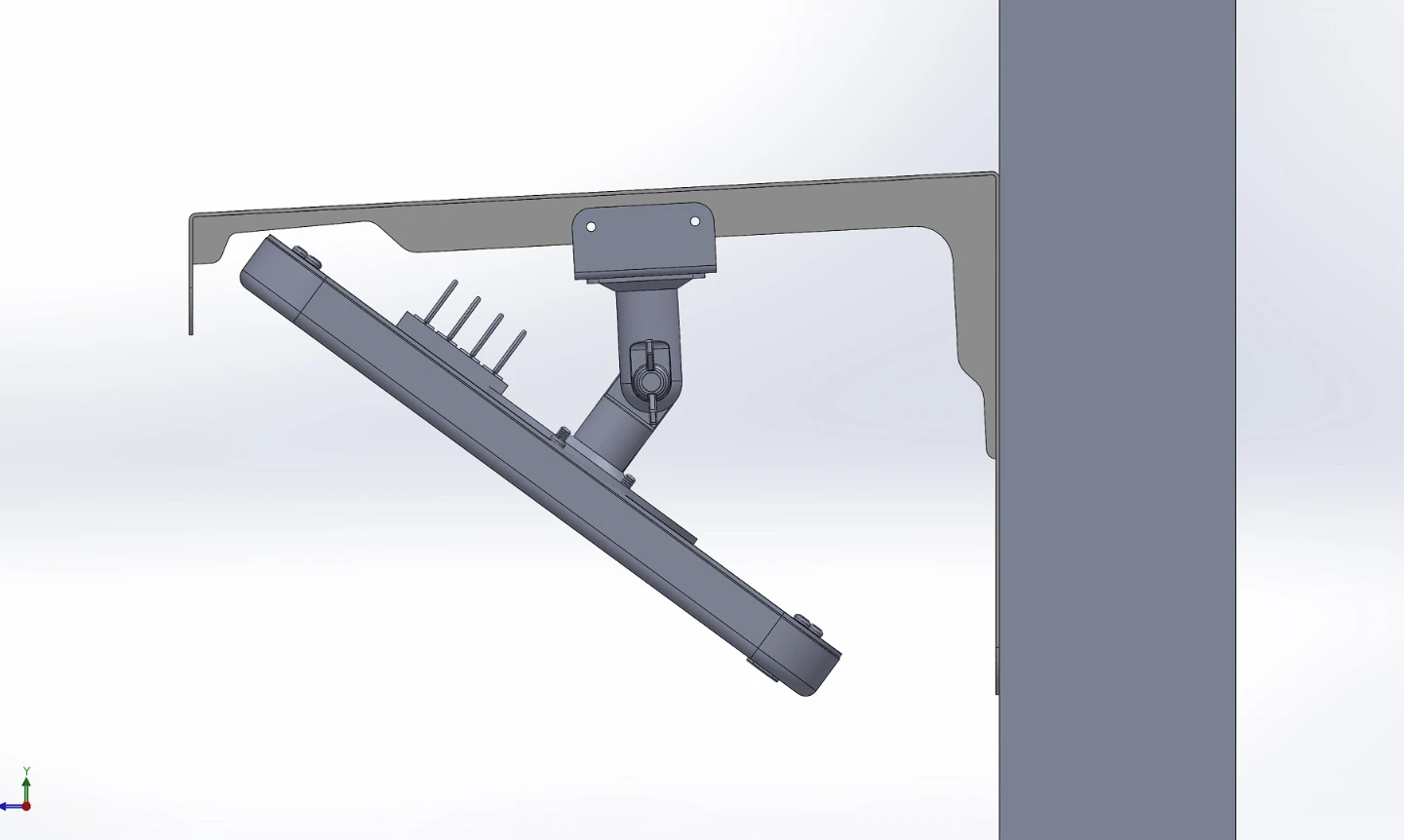

Outdoor wall mount
Acouspade XLS - Technical Specification
By focusing sound in a narrow beam, Acouspade™ is able to place sounds at any desired spatial location, making it possible to deliver acoustic information to the public precisely where it is needed.
Electrical
Input voltage: 230V or 120V, 50/60 Hz
Power supply: 24V/2,7A
Dimensions and weight
Acouspade-XLS emitter dimension: 600 x 300mm; thickness: 21mm
Acouspade-XLS amplifier dimensions: 173 x 84 x 38mm
